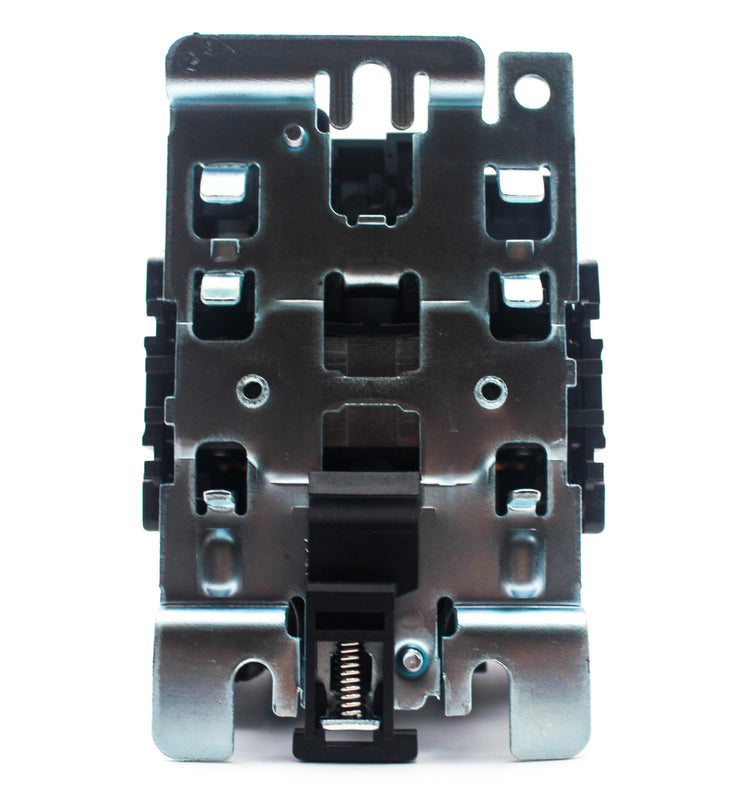

CJ C3X2 AC Contactor is used in AC 50Hz/60Hz circuit with rated insulating voltage of 690V, rated
working voltage of 400V and rated working current from 9A-95A in AC-3 utilization Category.
•It is used to making or breaking the circuit and for frequent start AC motors from a distance.
It can also be used as electro-magnetic starter when matching with thermal relay to protect the
circuit against overload.
•Conform to IEC/EN 60947-1 ,IEC/EN 60947-5-1
Operation and installation conditions
Type
Operation and installation conditions
Installation class
III
Pollution degree
3
Compliant standards
IEC/EN 60947-1, IEC/EN 60947-5-1
Certification mark
CE
Enclosure protection degree
CJ C3X2〜32: IP20; CJ C3X2-40-95: IP10;
Ambient temperature
Operation temperature limits: -35’C ~+70C Normal operation temperature range: -5 C ~+40 C . The 24-hour average temperature should not exceed +35 C . For use beyond the normal operation temperature range.
Altitude
Not exceeding 2000 m above sea level
Atmospheric conditions
The relative humidity should not exceed 50% at the upper temperature limit of +70 C . A higher relative humidity is allowed at a lower temperature, e g. 90% at+20C – Special precautions should be taken against occasional condensation due to humidity variations
Installation conditions
The angle between the installation surface and the vertical surface should not exceed ±5°.
Additional Information
Main circuit parameter
Technical performance
Contactor model
Rated insulation voltage Ui (V)
690V
Rated impulse withstand voltage Uimp (kV)
8kV
Rated making capacity
Making current: 10x|e (AC-3) or 12x le (ACV)
Rated breaking capacity
Breaking current: 8x|e (AC-3) or 10xle (AC-4)
1.2×106
Electrical life (cycles)
1.2×107
1.2×106
0.8×106
1.2×107
Mechanical life (cycles)
1×107
0.9×107
0.65×107
Main contact
3NO
Matching thermal overload relay
LR2-36
LR2-93
Built-in auxiliary contact
09-32A1 NO or 1NC ; 40-95A 1NO+1NC
Coil control power supply
24,110,220, 230, 240,415V
24,36,48,110,127,220,230,240,380,415V
Control voltage
(70% ~ 120%) Us
(20% ~ 65%) Us
Coil average power (VA)
Start
CJ C3X2-09-18
40-60
CJ C3X2-25-32
50-70
CJ C3X2-40-65
160-120
CJ C3X2-80-95
190-250
Hold
CJ C3X2-09-18
9.5
CJ C3X2-25-32
8-11.4
CJ C3X2-40~65
13-24
CJ C3X2-80-95
17-30
AC
CJ C3X2-09-32
1~3
Heat
CJ C3X2-40~65
4~8
dissipation(W)
CJ C3X2-80-95
6~10
DC
–
